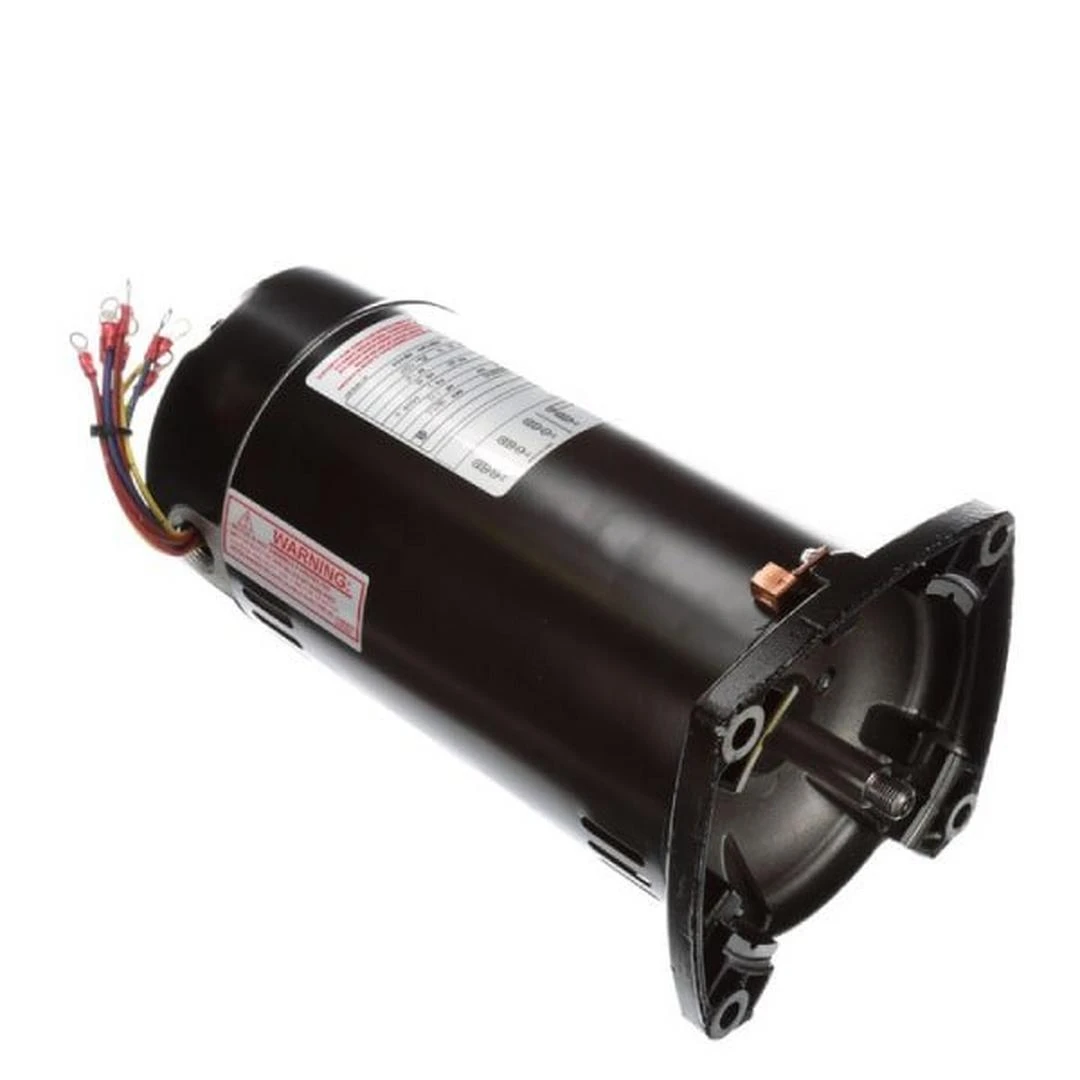

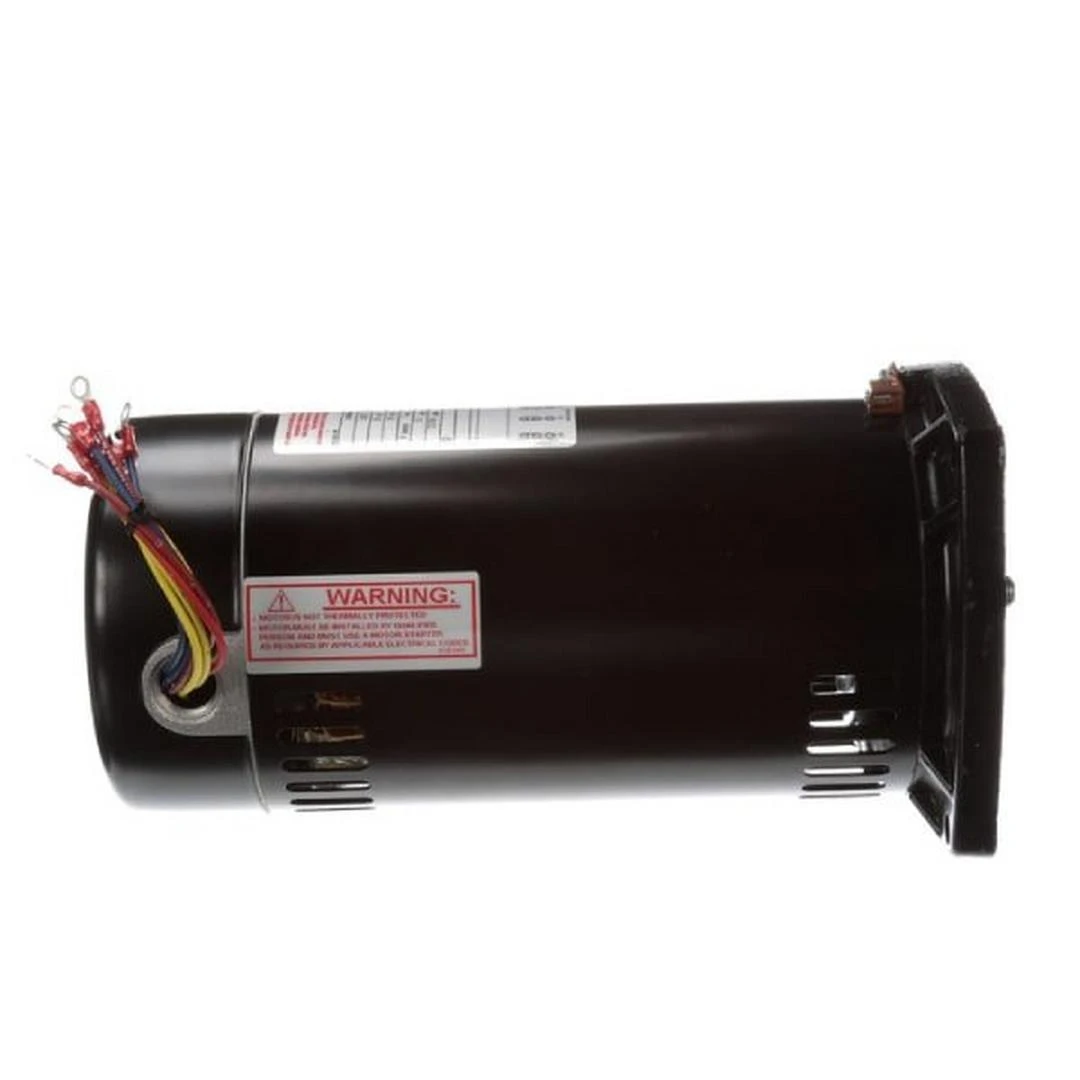

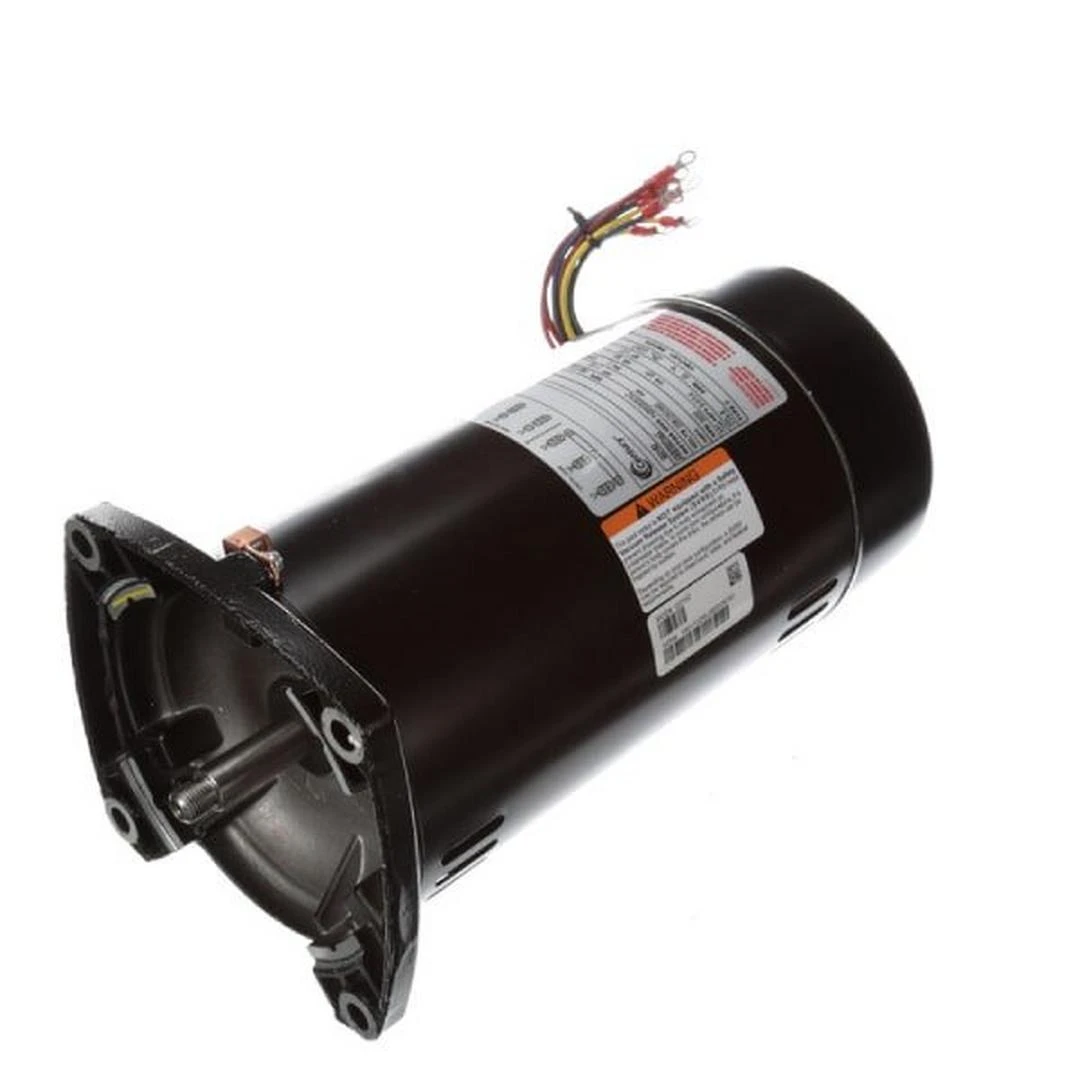

Century A.O. Smith – 48Y Square Flange 1-1/2 HP Single Speed Three Phase Pool And Spa Motor

The A.O. Smith Two-Compartment Square Flange Pool Motor works efficiently with its single-speed design.

The A.O. Smith Two-Compartment Square Flange Pool Motor works efficiently with its single-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start delivers enhanced performance. With horsepower ratings ranging from 3/4-1/8″P to 2-1/3HP, the Two-Compartment Square Flange Pool Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor is used on many Sta-Rite, Red Jacket, Sears Jet and Pool Pumps products. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Motor is sure to last. This motor does not include a hi/lo switch but the end cover and switch assembly may be purchased separately for remote operation. The Two-Compartment Square Flange Pool Motor also meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.

Installation Type:	Residential
Pool Type:	Spa/Hot Tub
Shaft Type:	Threaded
Phase Type:	Three Phase
Flange Type:	Square Flange
Motor Frame:	48Y Frame
Horsepower:	1-1/2 HP
Voltage:	230V / 460V
Service Factor:	1.25 – 1.50
Product Type:	Pool Motor
Energy Efficiency:	Standard
Manufacturer:	Century A.O. Smith
Warranty:	1-Year
Speed Settings:	Single Speed
