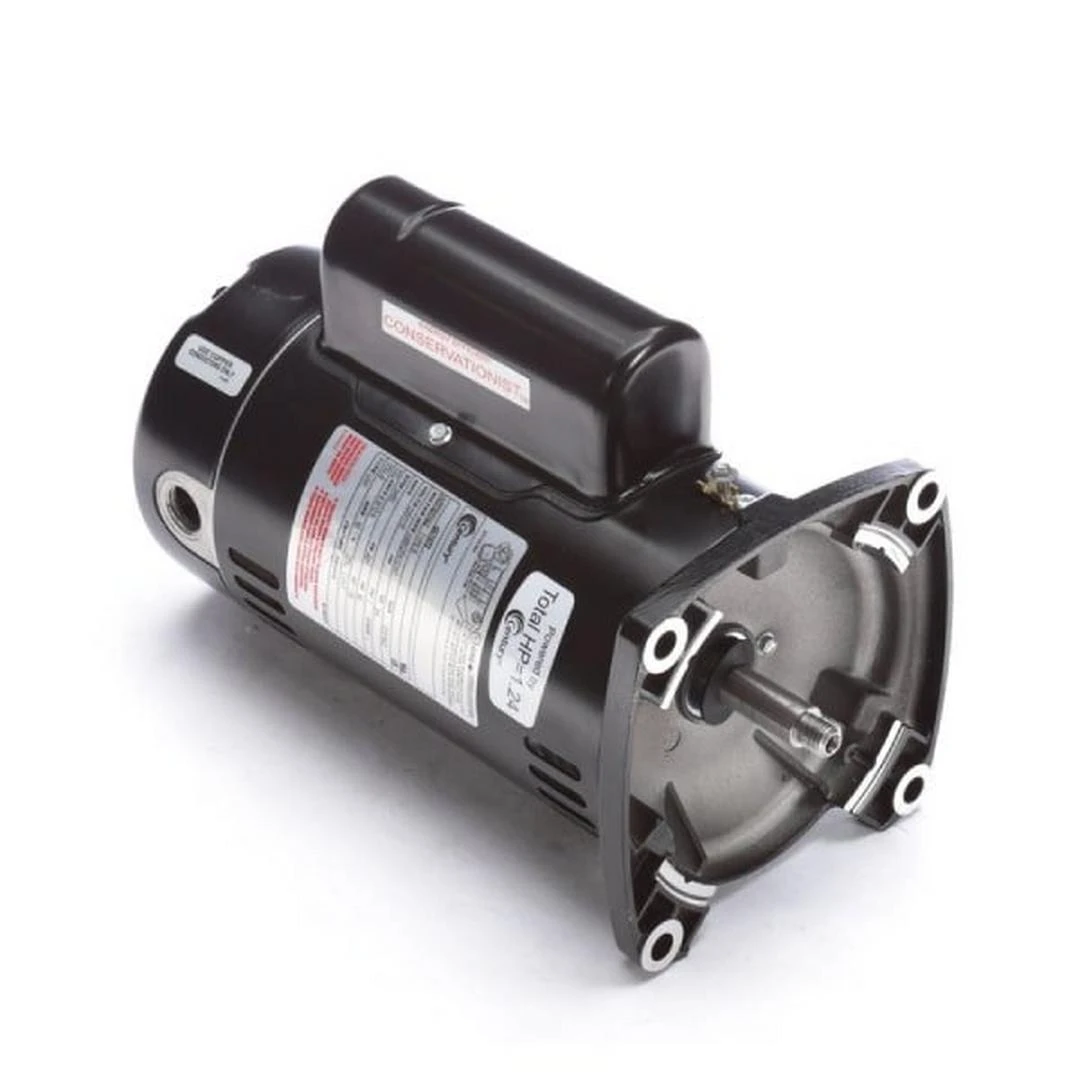

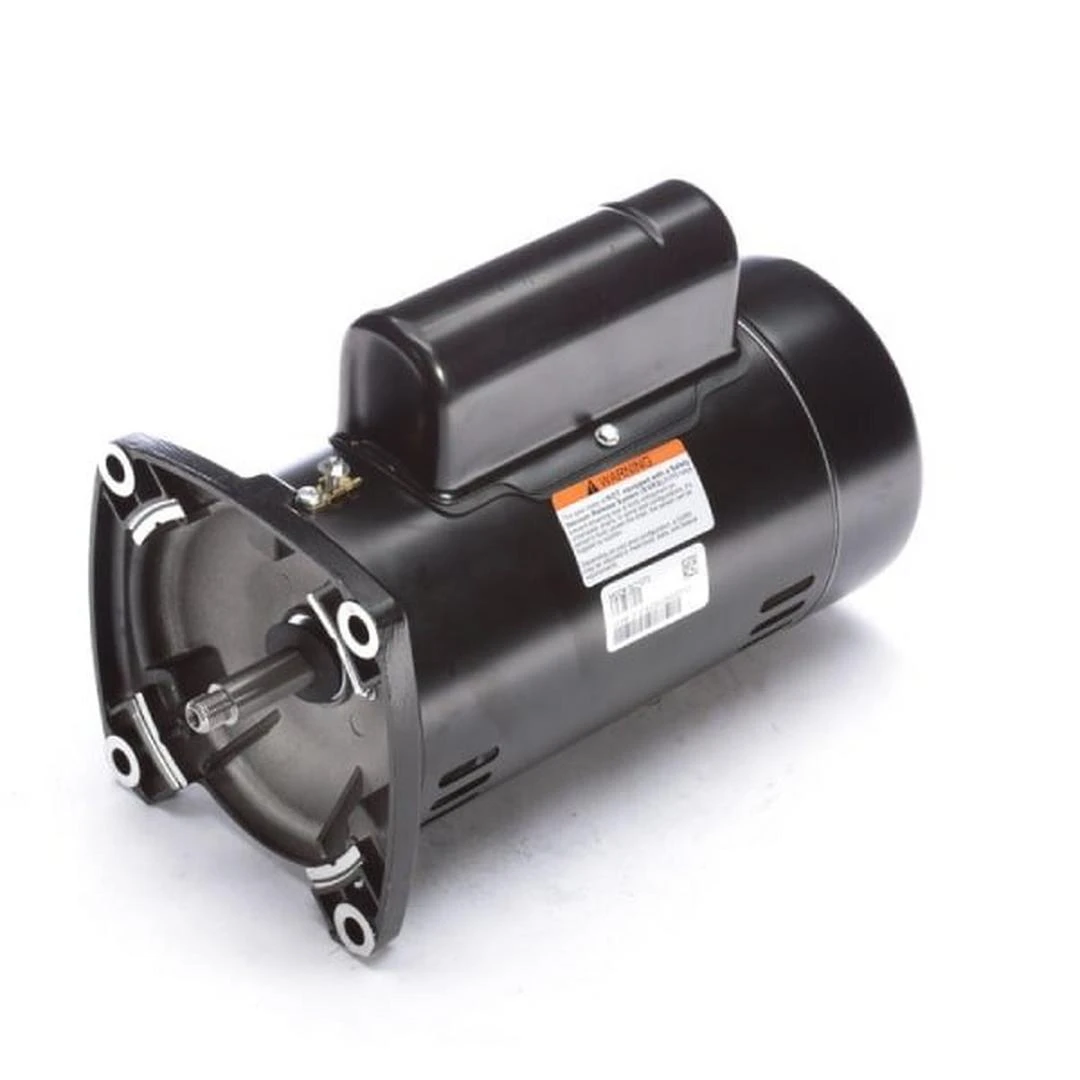

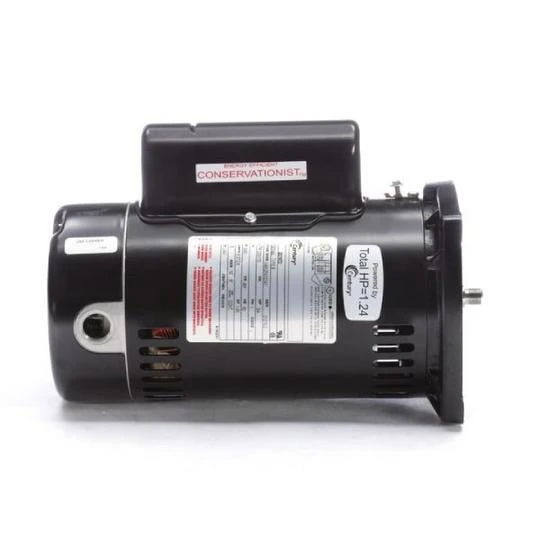

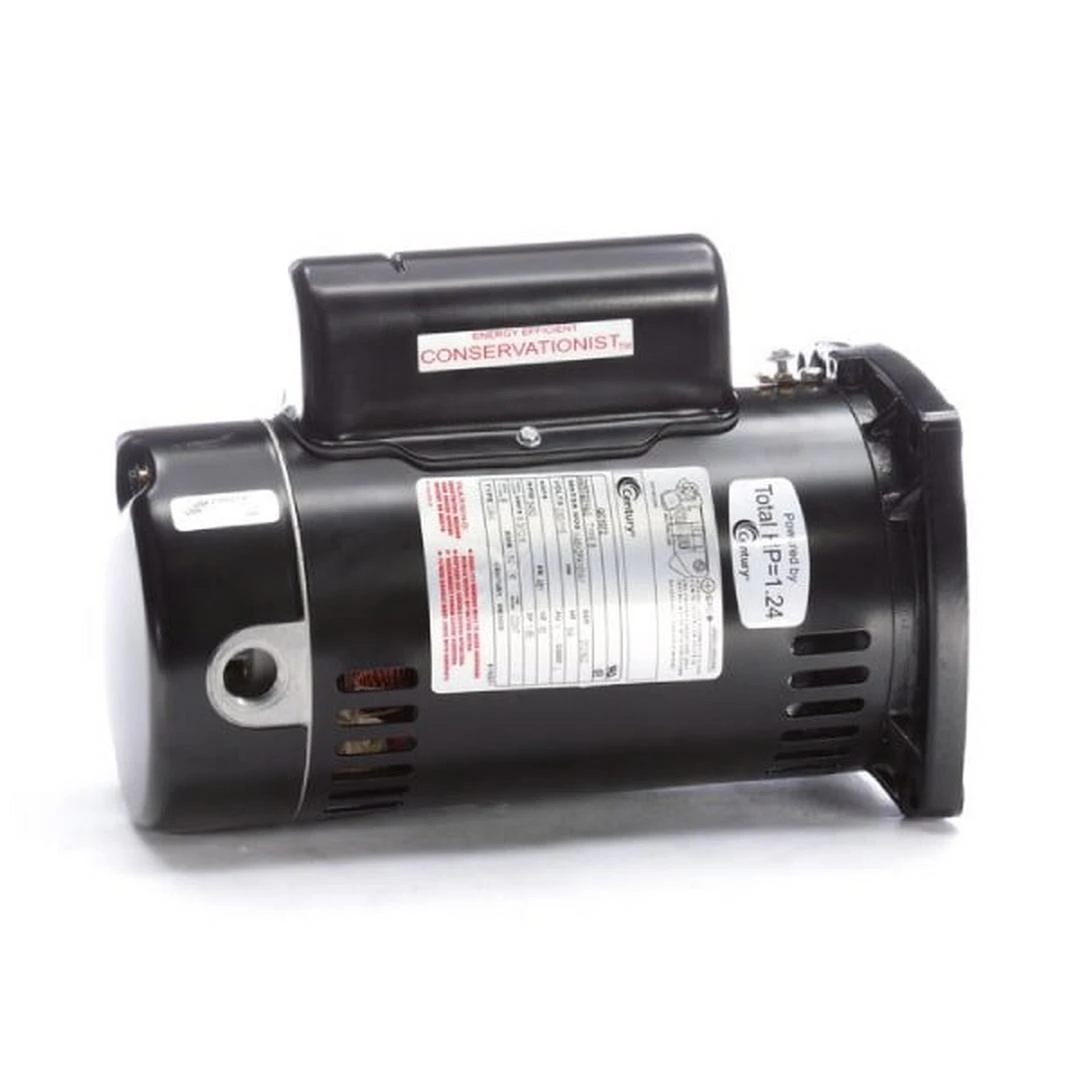

Century A.O. Smith – 48Y Square Flange 3/4 HP Full Rated Pool Filter Motor, 12.6/6.3A 115/230V

The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design.

The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start is run using a ?Conservationist?? motor for enhanced performance. With horsepower ratings ranging from 1/2″P to 3HP, the Two-Compartment Square Flange Pool Filter Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance. Used on many Sta-Rite, Red Jacket, Pac Fab and American products, it’s the perfect addition to your filter pump system for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Filter Motor is sure to last.

Energy Efficiency:	High Energy Efficiency
Speed Settings:	Single Speed
Shaft Type:	Threaded
Voltage:	115V / 230V
Horsepower:	3/4 HP
Installation Type:	Residential
Motor Frame:	48Y Frame
Voltage:	120V / 240V
Flange Type:	Square Flange
Service Factor:	1.50 – 1.75
Phase Type:	Single Phase
Rating Type:	Full-Rated
Product Type:	Pool Motor
Motor Frame:	48 Frame
Manufacturer:	Century A.O. Smith
Warranty:	1-Year
Pump Speed:	Single
Service Factor:	1.65
Total Horsepower:	1.24 THP
