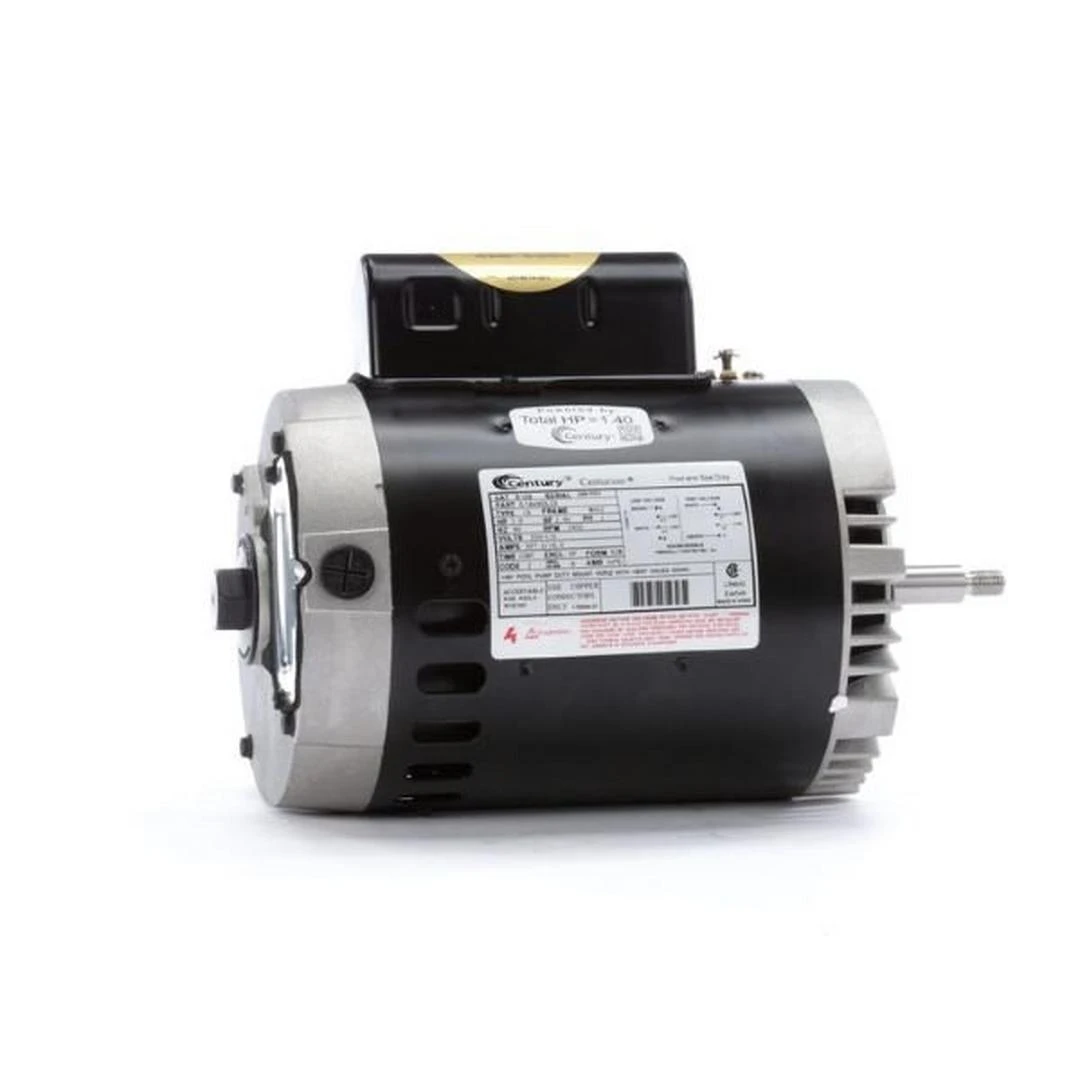

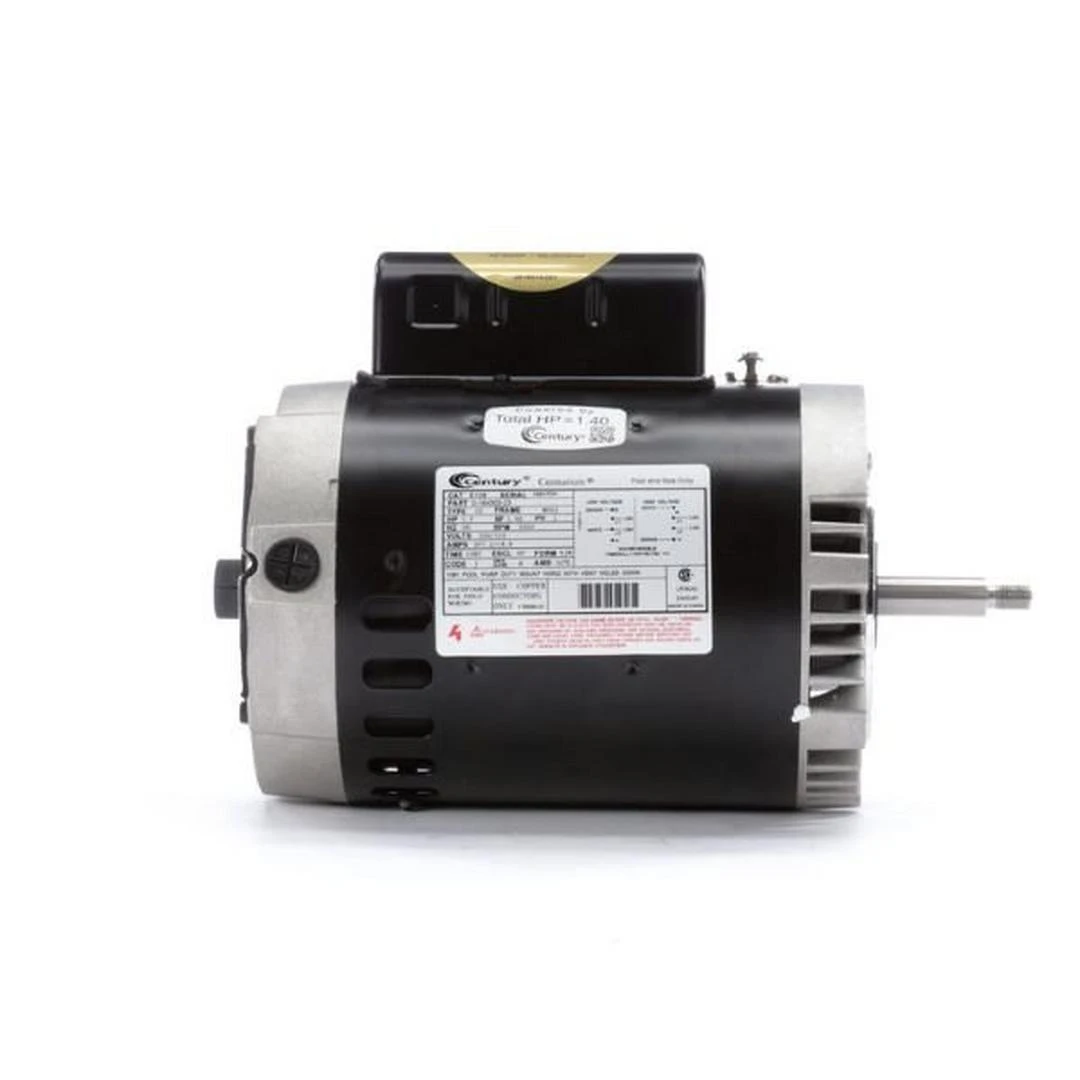

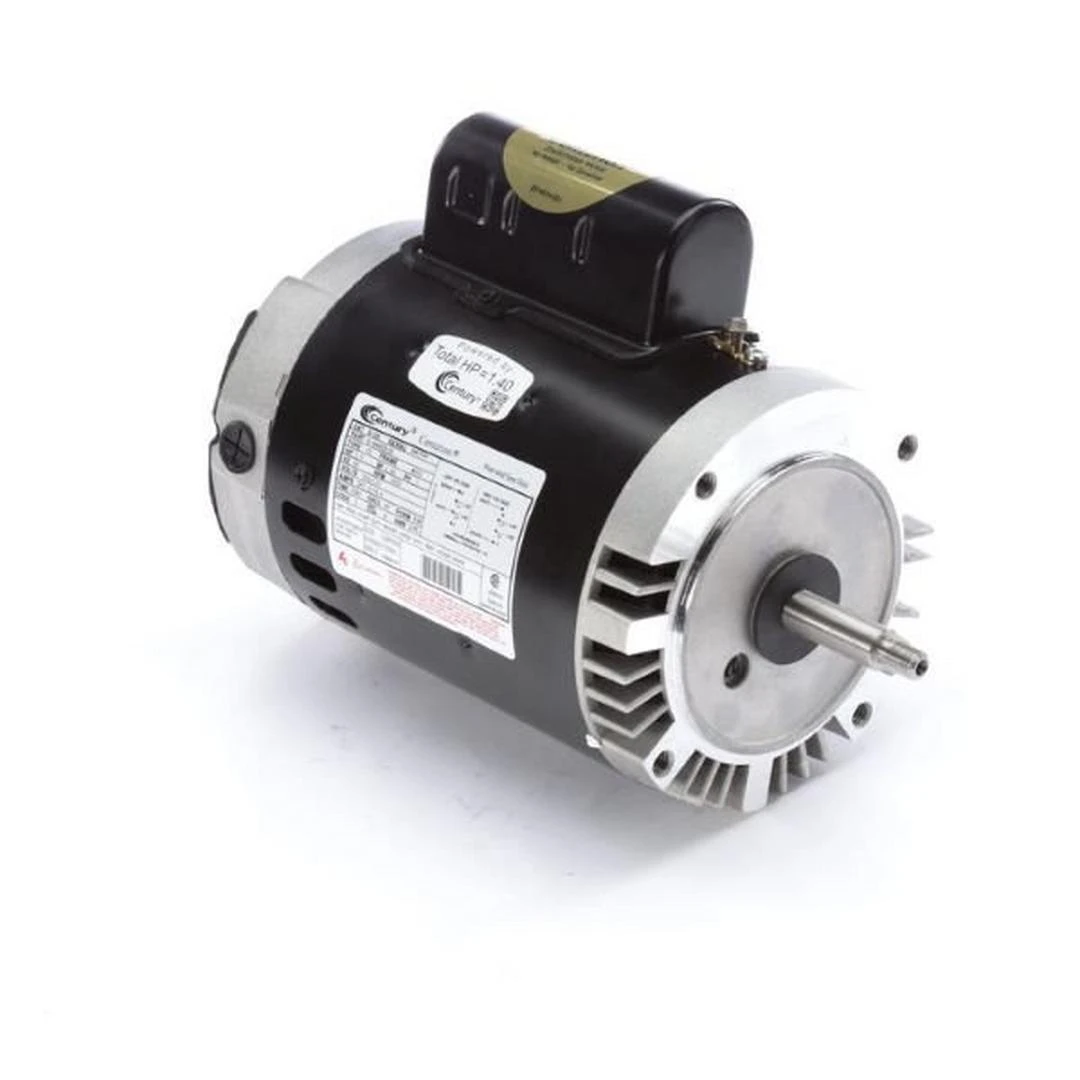

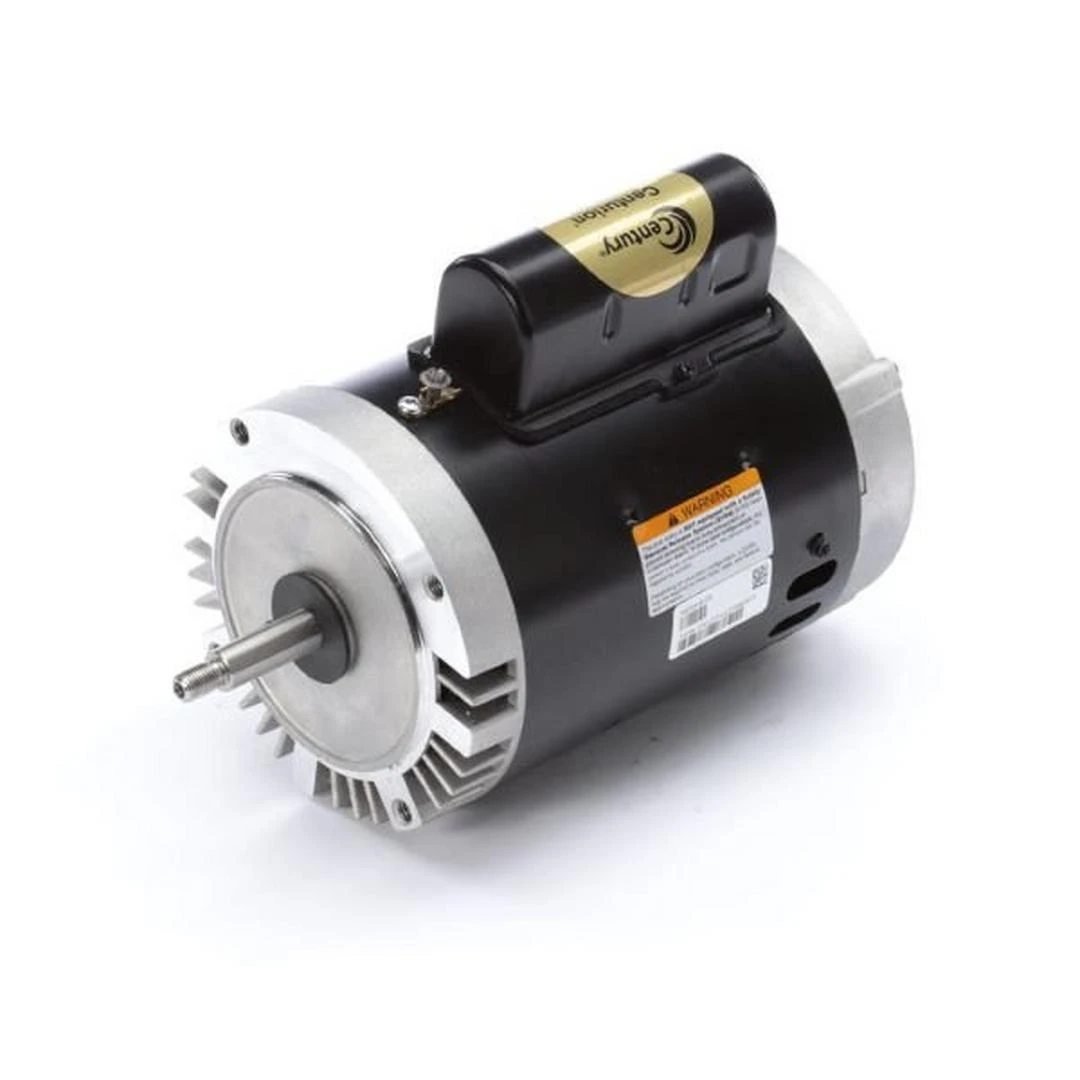

Century A.O. Smith – B128 C-Face Single Speed 1HP Full Rated 56J Pump Motor, 7.2/14.4A 115/230V

The Century A.O. Smith B128 C-Face Single Speed 1HP Full Rated 56J Pump Motor, 7.2/14.4A 115/230V works efficiently with its single-speed design.

The Century C-Face Pool and Spa Pump Motor is a single-phase motor with a permanent split capacitor for enhanced running efficiency. It meets industry standards with its 1081 design while providing durability with its aluminum NEMA-C brackets. Equipped with an auto overload protector, a stainless steel shaft, and ball bearings, the Century C-Face Pool and Spa Pump Motor provide long-lasting operation. Available in Full and Up-Rated models ranging from 1/2″P to 3HP, it delivers high performance.

Service Factor:	1.25 – 1.50
Horsepower:	1 HP
Flange Type:	J Flange
Voltage:	240V
Shaft Type:	Threaded
Phase Type:	Single Phase
Speed Settings:	Single Speed
Installation Type:	Residential
Pool Type:	Spa/Hot Tub
Rating Type:	Full-Rated
Product Type:	Pool Motor
Motor Frame:	56 Frame
Energy Efficiency:	Standard
Compatible Pumps:	SHPF1.0
Manufacturer:	Century A.O. Smith
Warranty:	1-Year
