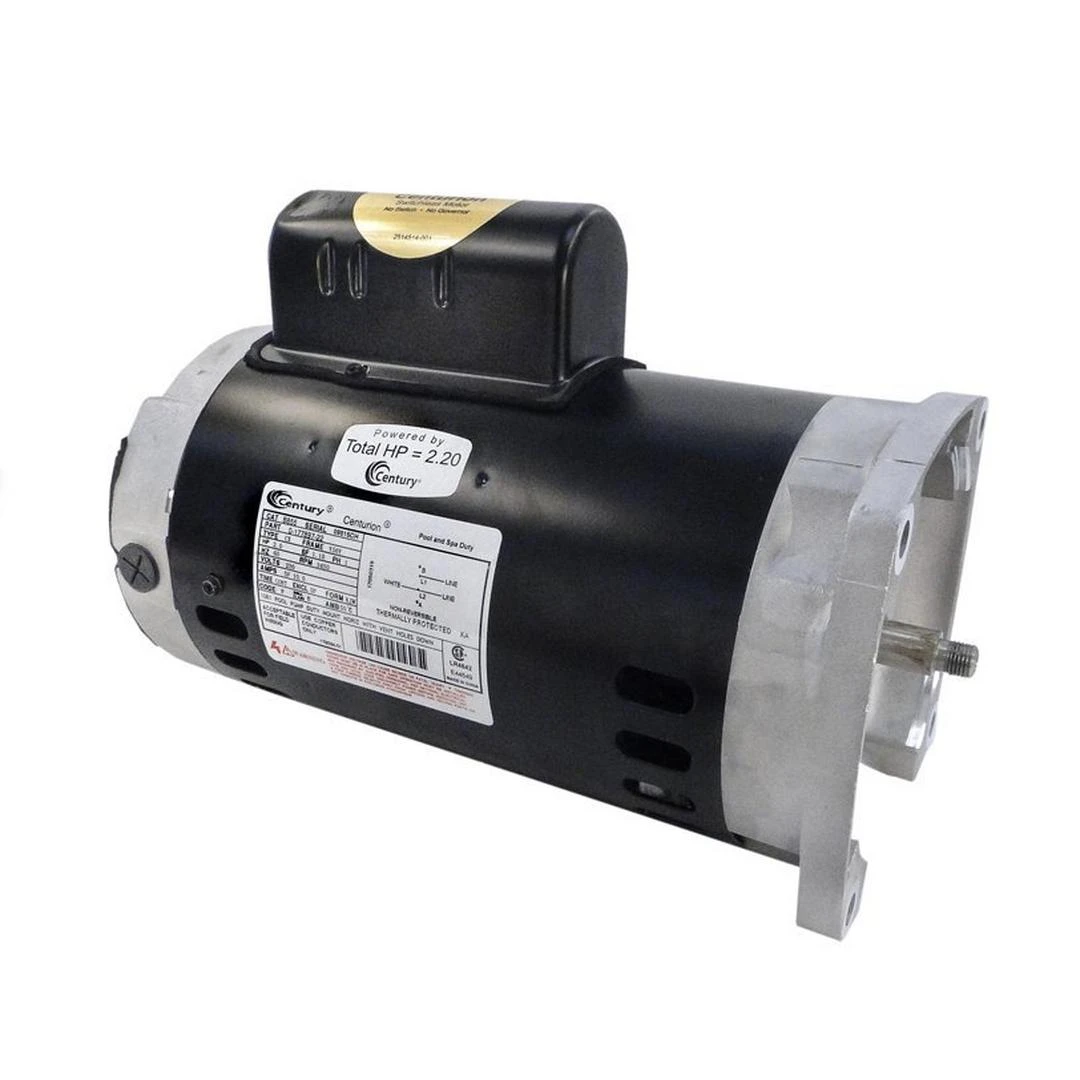

Century A.O. Smith – B855 Square Flange 2 HP Up-Rated 56Y Pool And Spa Pump Motor

The B855 Square Flange 2HP Up-Rated Single Speed 230V Pool and Spa Pump Motor by Century A.O. Smith is a single-phase motor.

The Century Pool and Spa Pump Motor is a single-phase motor with a permanent split capacitor for enhanced running efficiency. Equipped with an auto overload protector and ball bearings, the Century B855 Pool and Spa Pump Motor provides long lasting operation. The Century Pool and Spa Pump Motor has a threaded shaft that allows for convenient and direct mounting. Available in horsepower ratings ranging from 1/2HP to 3HP, the Century A.O. Smith Pool and Spa Pump Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance.
Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.

Service Factor:	1.00 – 1.25
Installation Type:	Residential
Shaft Type:	Threaded
Horsepower:	2 HP
Motor Frame:	56Y Frame
Flange Type:	Square Flange
Speed Settings:	Single Speed
Phase Type:	Single Phase
Voltage:	230V
Pool Type:	Spa/Hot Tub
Voltage:	240V
Rating Type:	Up-Rated
Product Type:	Pool Motor
Motor Frame:	56 Frame
Energy Efficiency:	Standard
Compatible Pumps:	SHPM2.0
Compatible Pumps:	343240
Manufacturer:	Century A.O. Smith
Warranty:	1-Year
