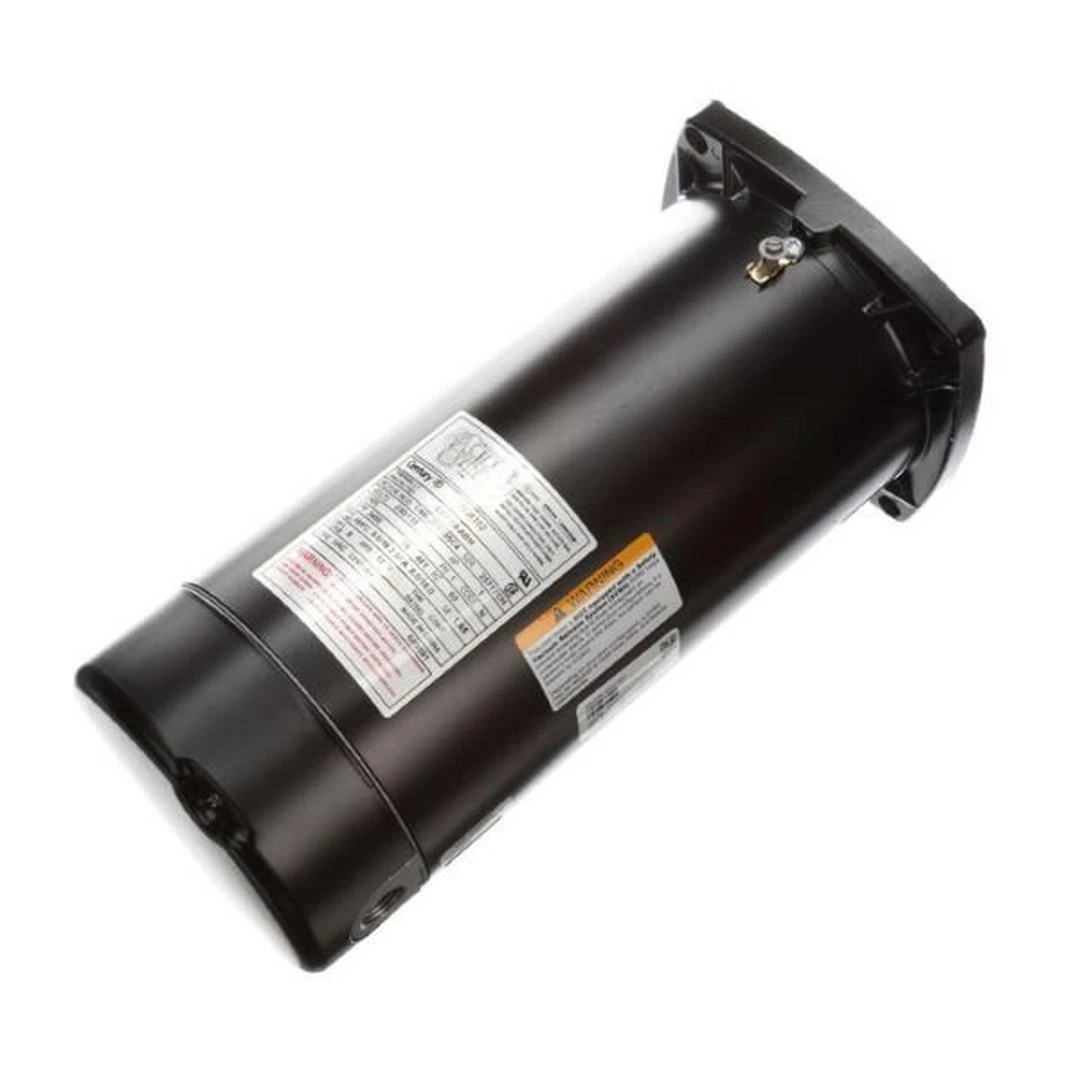

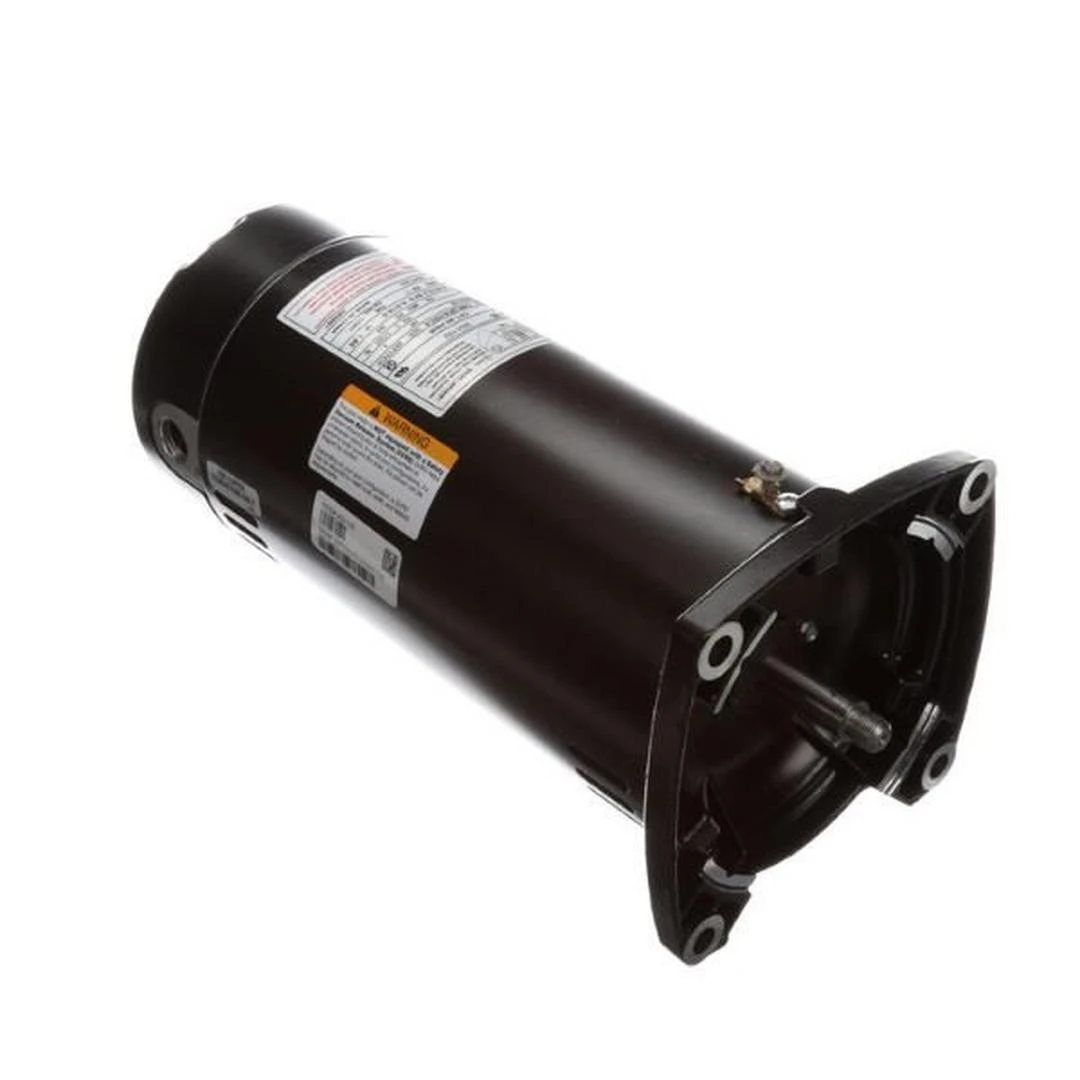

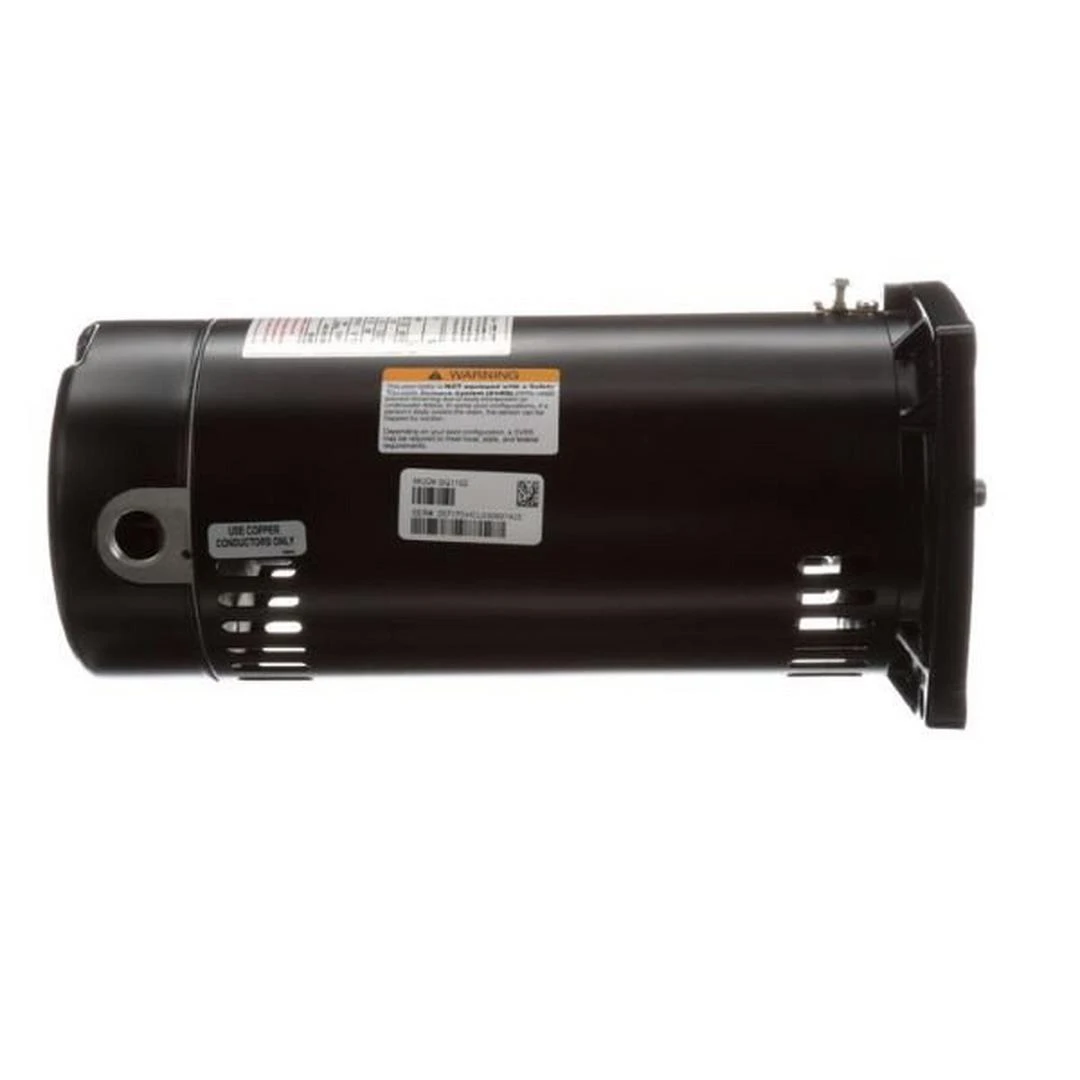

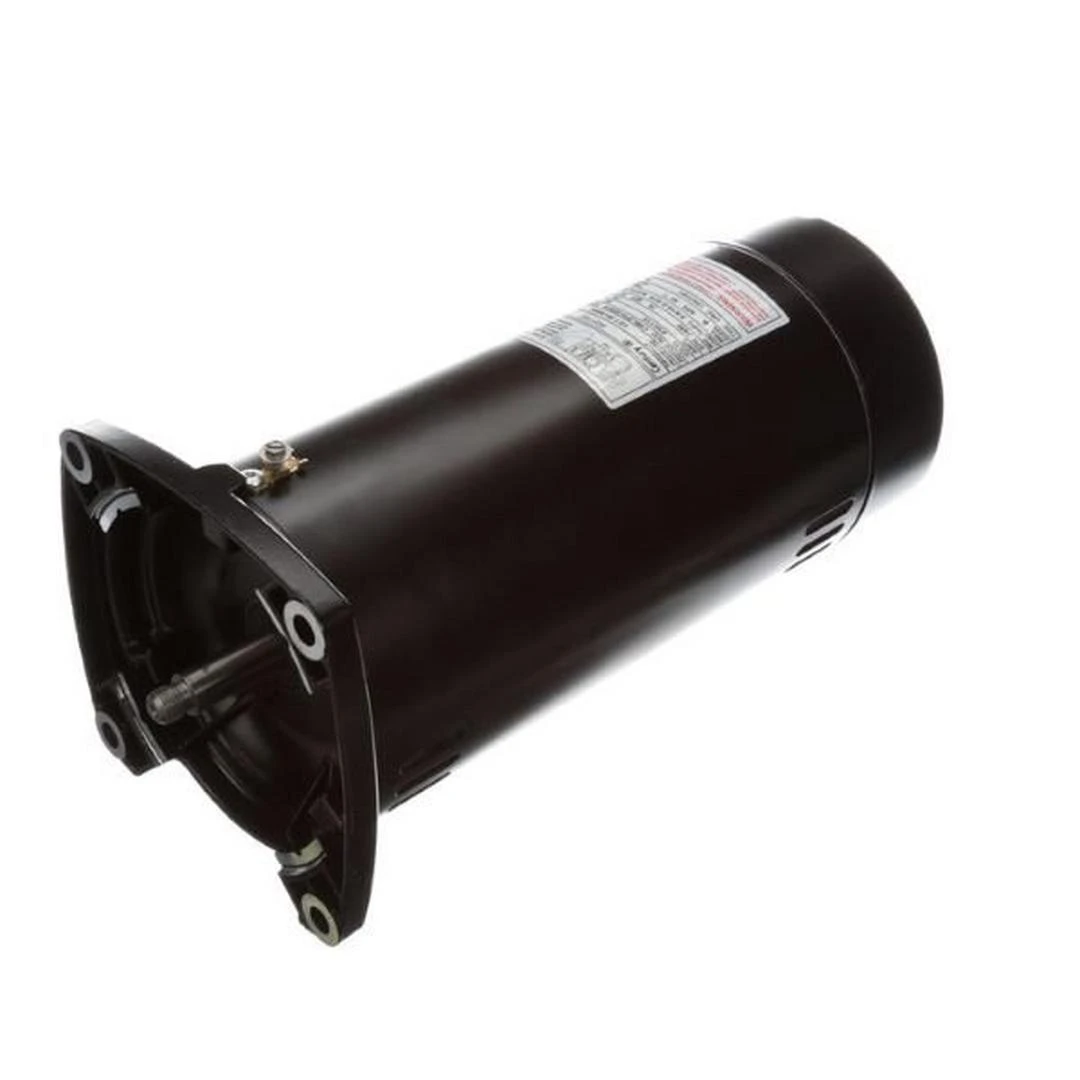

Century A.O. Smith – SQ1102 Square Flange 1 HP Full Rated 48Y Pool Filter Motor, 115/230V

Century A.O. Smith SQ1102 Square Flange 1 HP Full-Rated 48Y Pool Filter Motor works efficiently with its single-speed design.

Century A.O. Smith SQ1102 Square Flange 1 HP Full-Rated 48Y Pool Filter Motor works efficiently with its single-speed design. With horsepower ratings from 1/3HP to 3HP, the Two-Compartment Square Flange Pool Filter Motor is available in Full or Up-Rated models and provides long-lasting and trustworthy performance. Used on many Sta-Rite, Red Jacket, Pac Fab and American products, this motor is the perfect addition to your filter pump system for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with an open drip-proof enclosure, the Two-Compartment Square Flange Pool Filter Motor is sure to last.

Phase Type:	Single Phase
Speed Settings:	Single Speed
Installation Type:	Residential
Service Factor:	1.50 – 1.75
Voltage:	115V / 230V
Shaft Type:	Threaded
Flange Type:	Square Flange
Voltage:	120V / 240V
Horsepower:	1 HP
Rating Type:	Full-Rated
Product Type:	Pool Motor
Motor Frame:	48 Frame
Energy Efficiency:	Standard
Compatible Pumps:	SP3210EE
Compatible Pumps:	PHPF1.0
Compatible Pumps:	P2R5E
Compatible Pumps:	P4R6E
Compatible Pumps:	MPE6E-206L
Compatible Pumps:	PE5EL
Compatible Pumps:	P6E6E-206L
Compatible Pumps:	P6EA6E36-205
Compatible Pumps:	P6R62E3-187
Manufacturer:	Century A.O. Smith
Warranty:	1-Year
