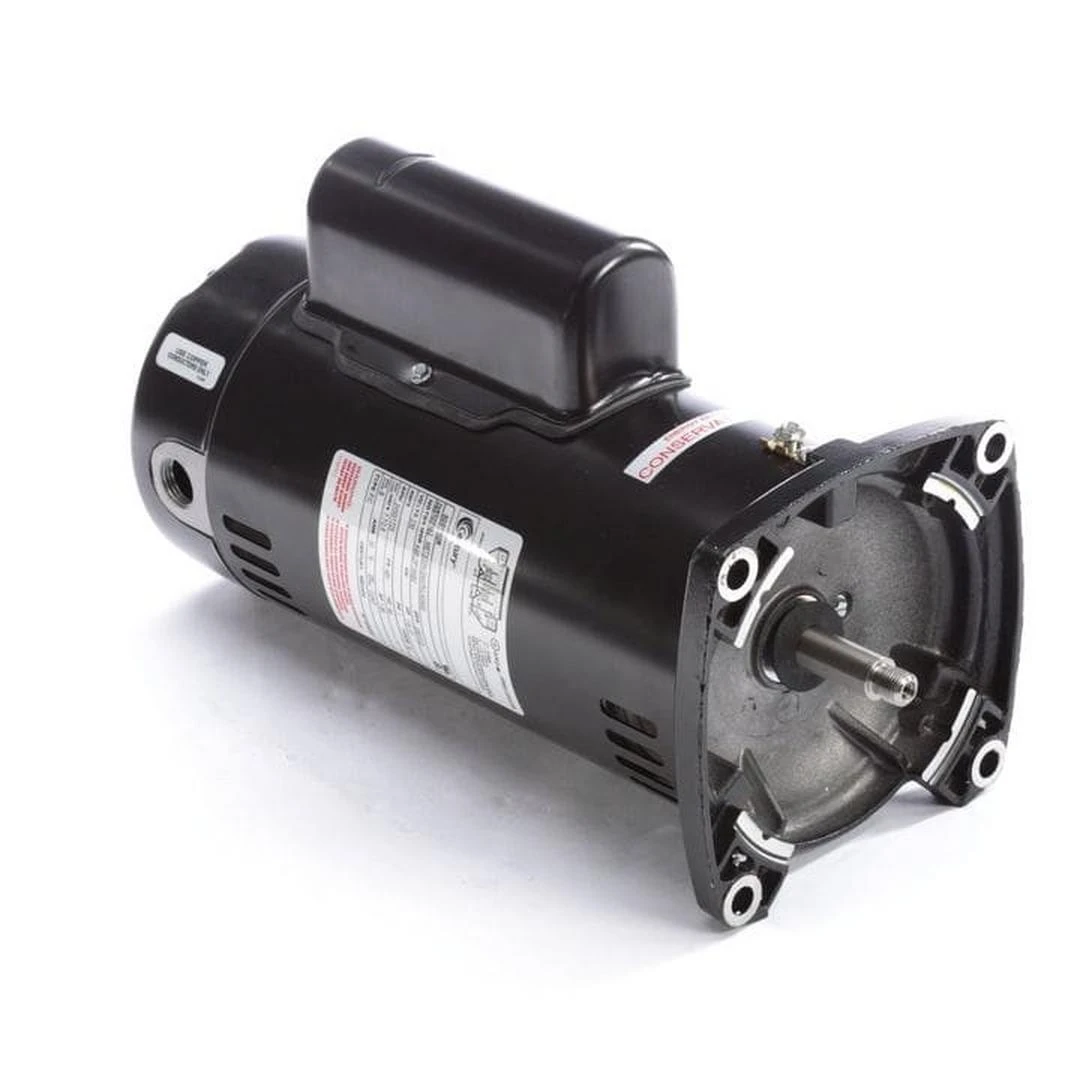

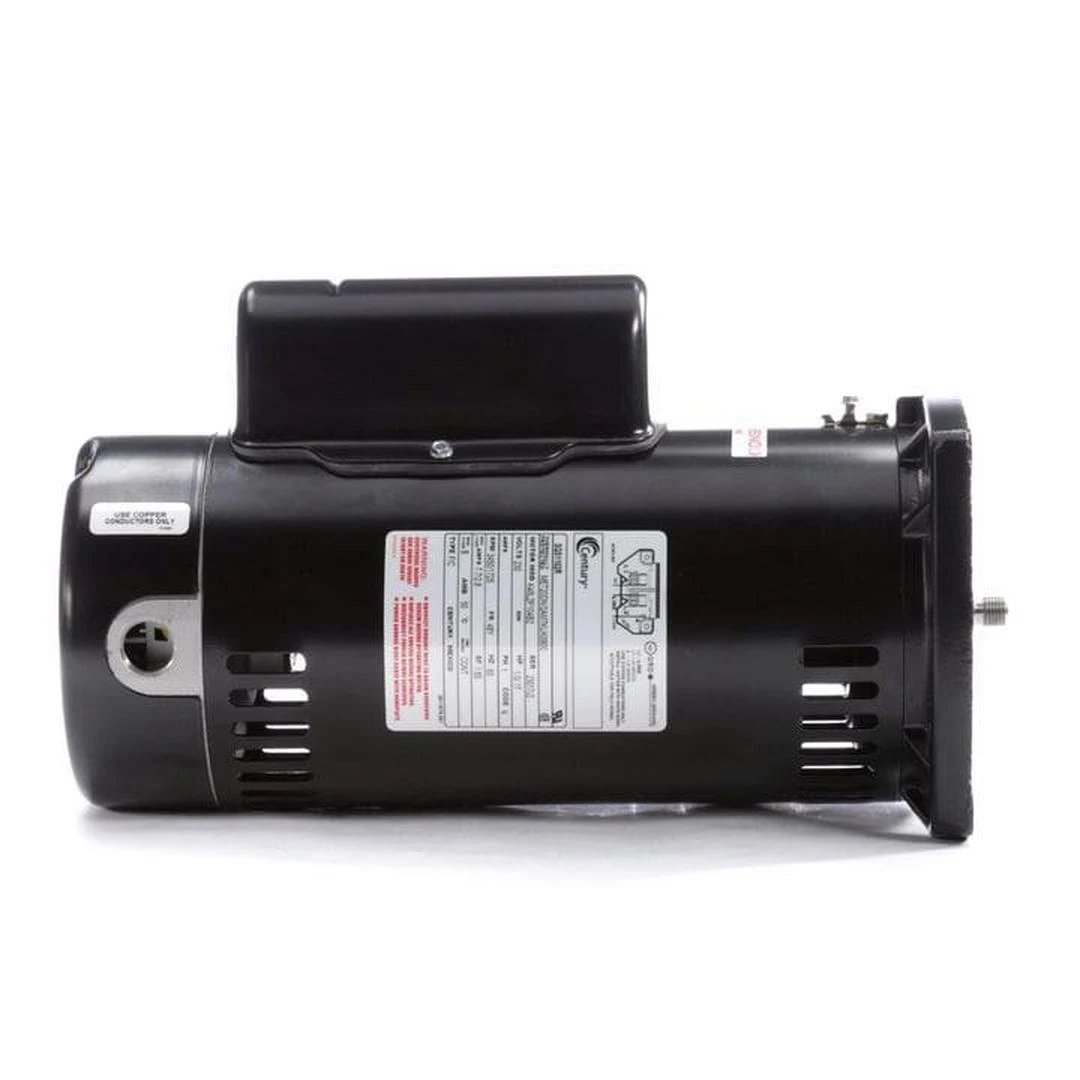

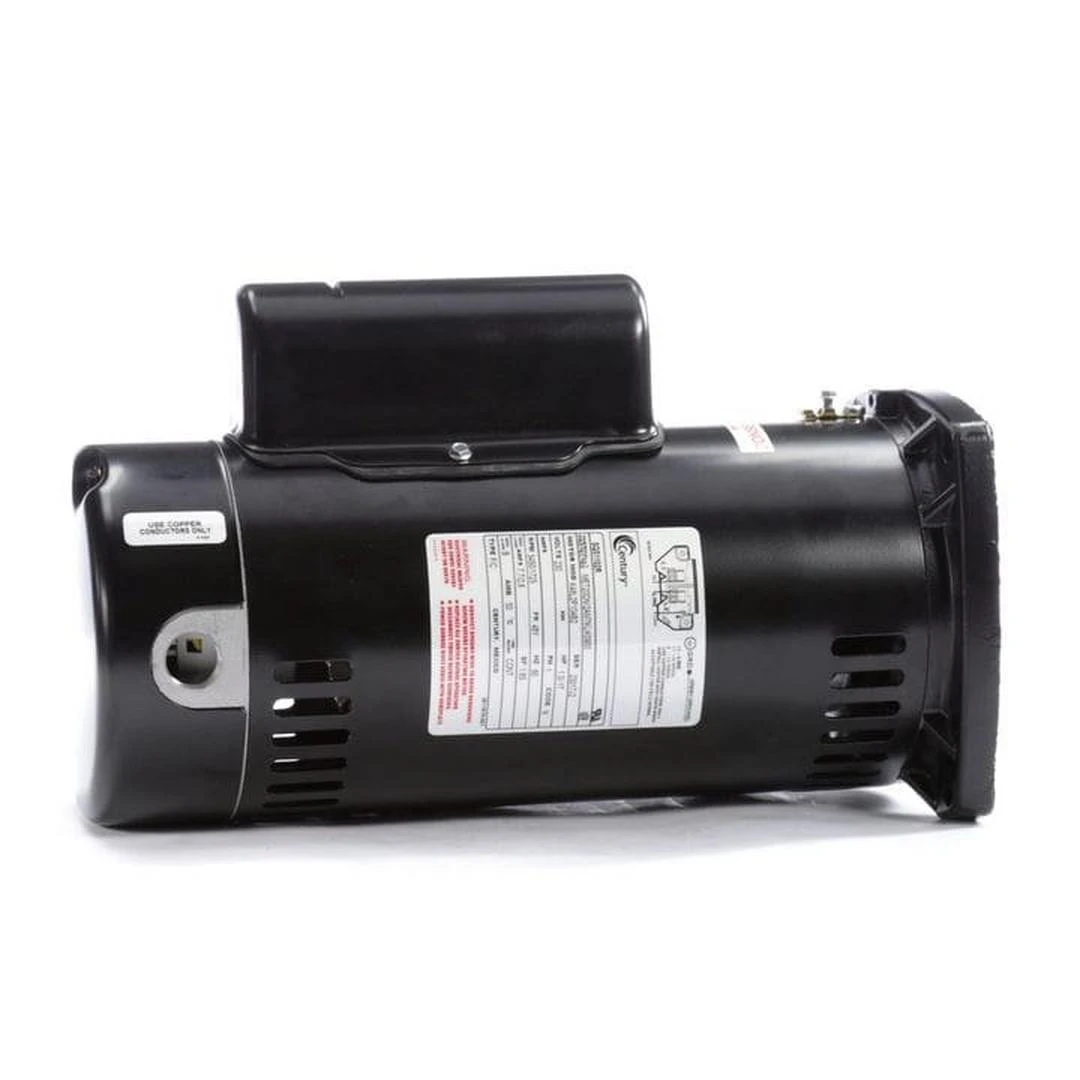

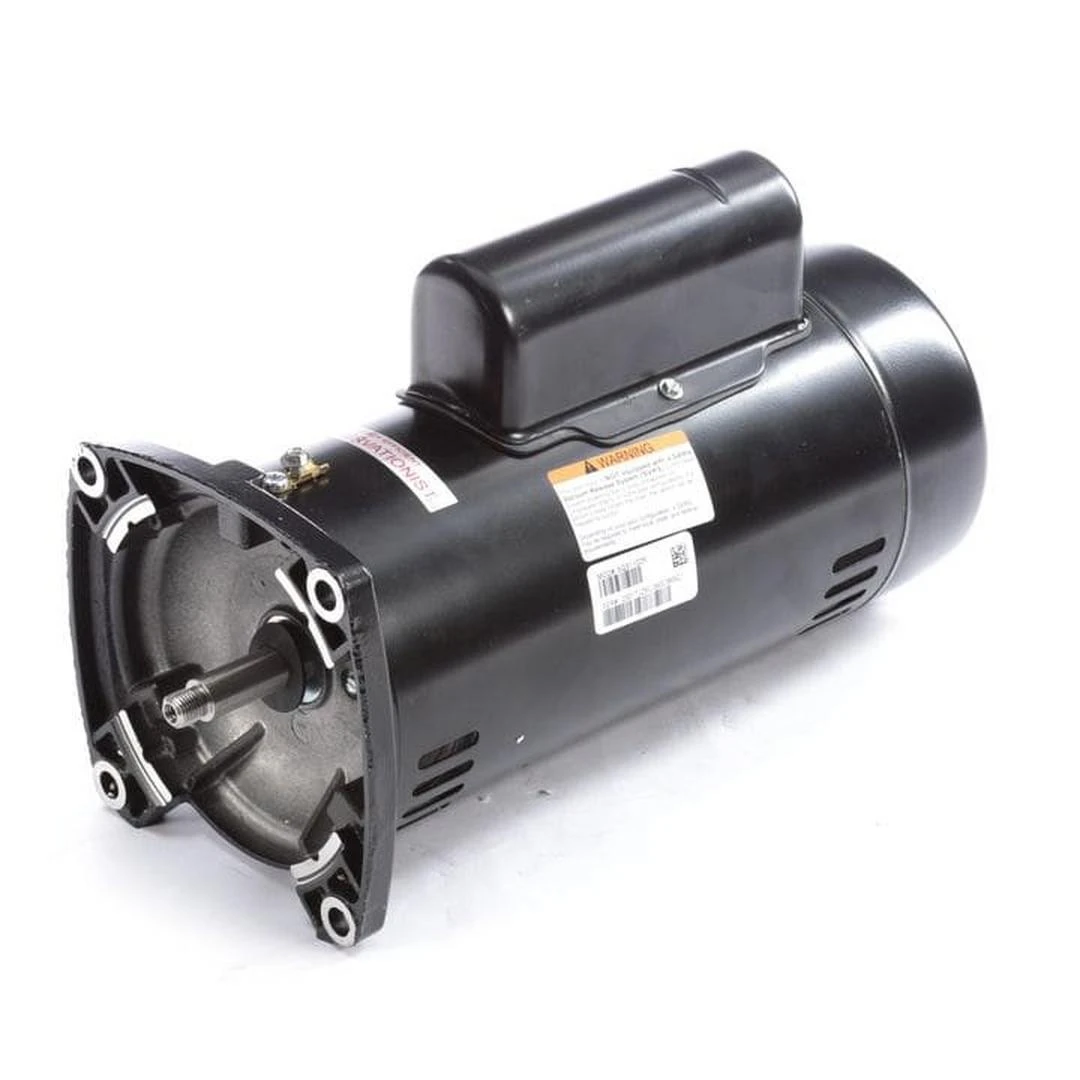

Century A.O. Smith – SQS1102R Square Flange 1HP Dual Speed Full Rated 48Y Pool And Spa Pump Motor

Century A.O. Smith SQS1102R Square Flange 1HP or 1/6 HP Dual Speed Full Rated 48Y Pool and Spa Pump Motor, 7.7/2.8A 230V.

The A.O. Smith Two-Compartment Square Flange Pool Motor works efficiently with its two-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start delivers enhanced performance. With horsepower ratings ranging from 3/4-1/8″P to 2-1/3HP, the Two-Compartment Square Flange Pool Motor comes in Full or Up-Rated models and provides long-lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor is used on many Sta-Rite, Red Jacket, Sears Jet and Pool Pumps products. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with an open drip-proof enclosure, the Two-Compartment Square Flange Pool Motor is sure to last. This motor does not include a hi/lo switch but the end cover and switch assembly may be purchased separately for remote operation. The Two-Compartment Square Flange Pool Motor also meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.

Speed Settings:	Dual Speed
Pool Type:	Spa/Hot Tub
Flange Type:	Square Flange
Service Factor:	1.50 – 1.75
Installation Type:	Residential
Voltage:	240V
Horsepower:	1 or 1/6 HP
Shaft Type:	Threaded
Phase Type:	Single Phase
Rating Type:	Full-Rated
Product Type:	Pool Motor
Energy Efficiency:	Standard
Motor Frame:	48 Frame
Manufacturer:	Century A.O. Smith
Warranty:	1-Year
