Sale!

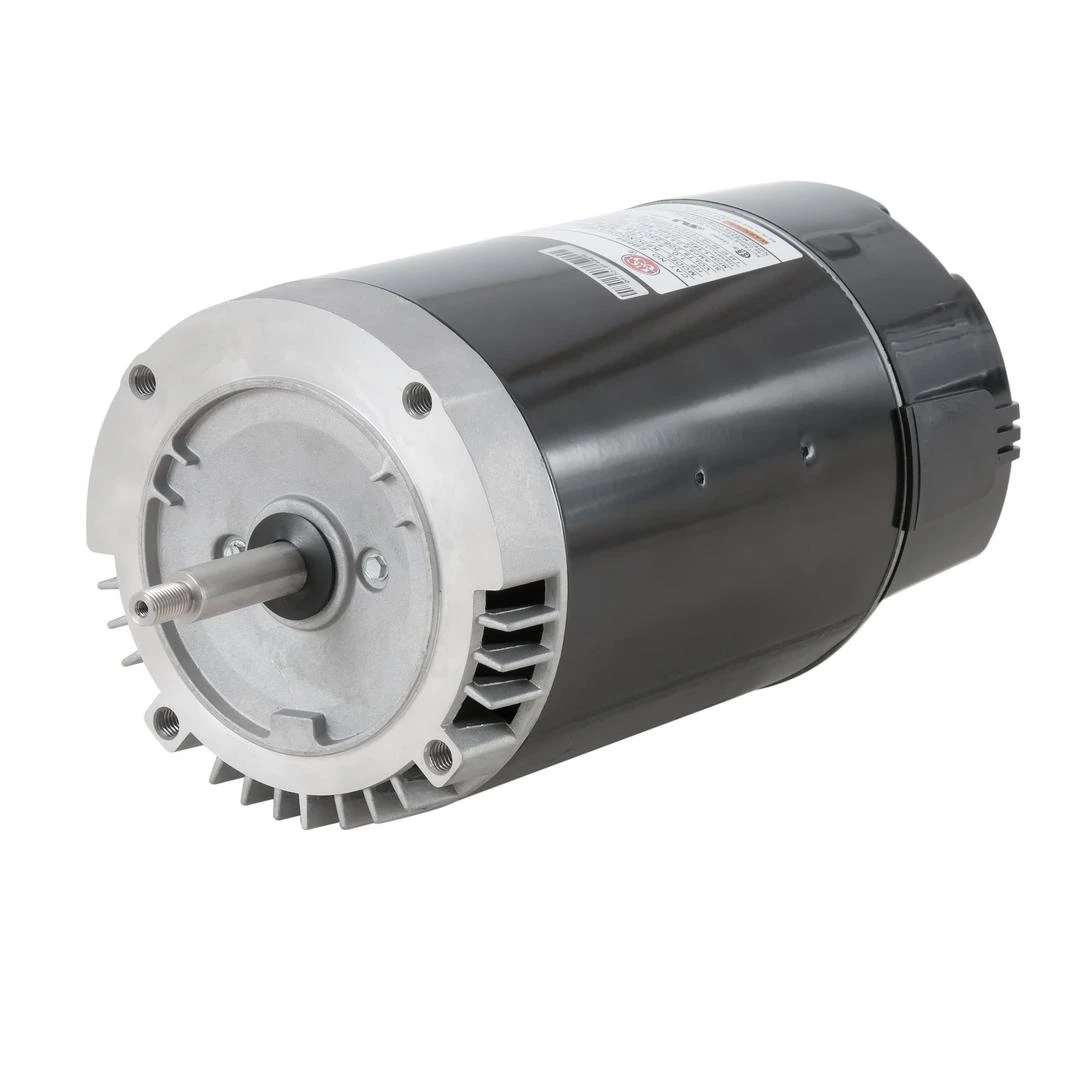

U.S. Motors - EB809/ASB809 C-Flange 2HP Full Rated 56J 230V Pool & Spa Pump Motor

U.S. Motors - EB809/ASB809 C-Flange 2HP Full Rated 56J 230V Pool & Spa Pump Motor - Image 2

U.S. Motors - EB809/ASB809 C-Flange 2HP Full Rated 56J 230V Pool & Spa Pump Motor - Image 3

U.S. Motors - EB809/ASB809 C-Flange 2HP Full Rated 56J 230V Pool & Spa Pump Motor - Image 4

U.S. Motors – EB809/ASB809 C-Flange 2HP Full Rated 56J 230V Pool & Spa Pump Motor

Original price was: $353.00.Current price is: $95.99.

SKU: AW50A 38569 Categories: PARTS, Pool Pump Motors, Single Speed Pump Motors

Shop the Best Quality Online
Free and fast shipping worldwide
High quality products, hassle-free returns.
Risk-Free Shopping with Returns

Description
Reviews (0)

The U.S. Motors Emerson EB809/ASB809 C-Face 2HP Full Rated 56J 230V Single Speed Pool and Spa Pump Motor is a powerfully designed replacement motor.

Two Compartment
50 Degree C Ambient
1081 Design
Continuous Duty
Class B Insulated
Open Dripproof
Sealed Ball Bearings
303 Stainless Steel Shaft
Service Factor: 1.2
RPM: 3450
10.3-9.5A 208-230V
Shaft: Threaded
Length without Shaft: 12.02

The U.S. Motors Emerson EB809/ASB809 C-Face 2 HP Full Rated 56J 208-230V Pool and Spa Pump Motor is a powerfully designed replacement motor.
Similar to spa and pool replacement motors, the Emerson 56 C-Flange Motor is a two-compartment model with a voltage selection device, running at 2HP and 208-230V. It is Class B-insulated for efficient operation and has been designed with both sealed ballbearing sand triple bearing protection. The Emerson replacement motor has an open drip-proof design for water damage prevention and is thermally protected.
Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.

Flange Type:	J Flange
Energy Efficiency:	High Energy Efficiency
Pool Type:	In Ground
Voltage:	208 – 230V
Voltage:	240V
Service Factor:	1.00 – 1.25
Speed Settings:	Single Speed
Horsepower:	2 HP
Rating Type:	Full-Rated
Product Type:	Pool Motor
Motor Frame:	56 Frame
Manufacturer:	U.S. Motors Emerson
